Perforated Panel

Perforated panel is specially designed for ventilation through below floor space up to the equipments, applied for under floor air conditioning system. Perforated pane is of accurate size and thickness, interchangeable with steel raised floor, woodcore panels or calcium sulphate panels. The ventilation rate of panel can be from 17% to 65%.

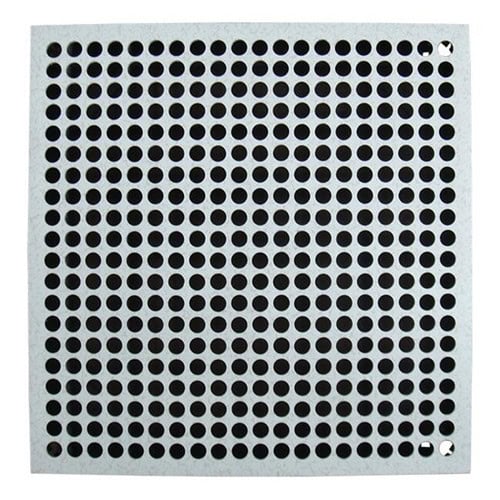

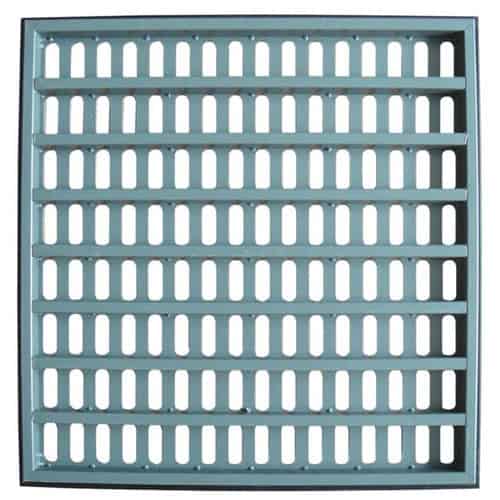

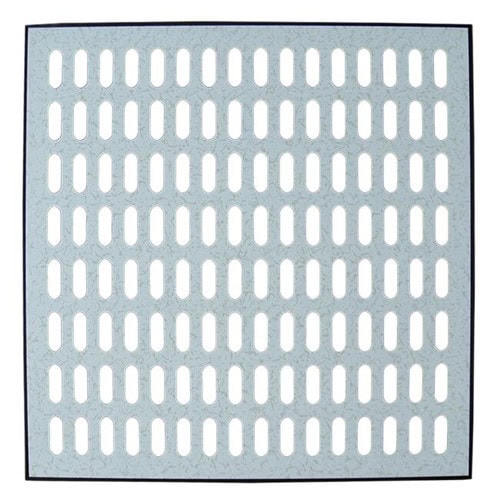

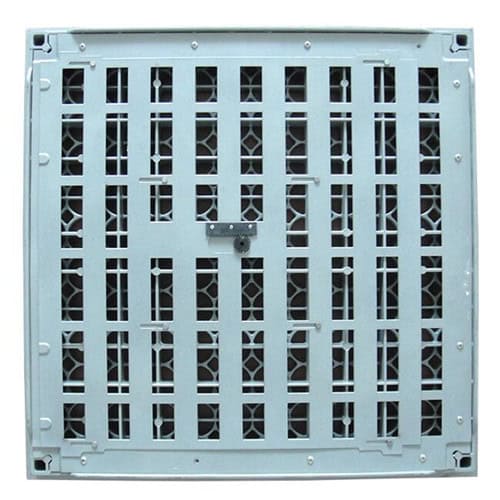

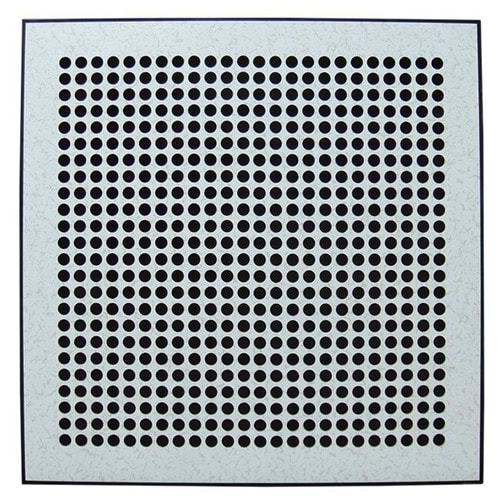

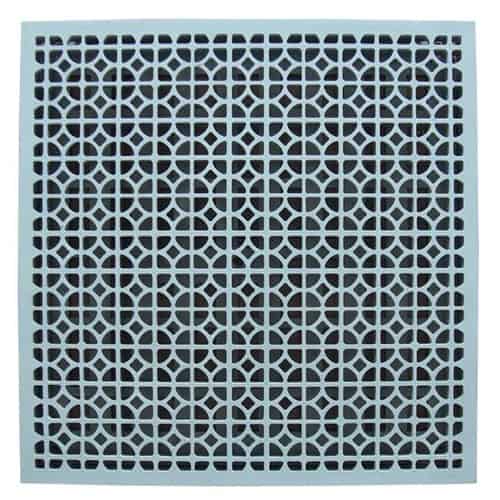

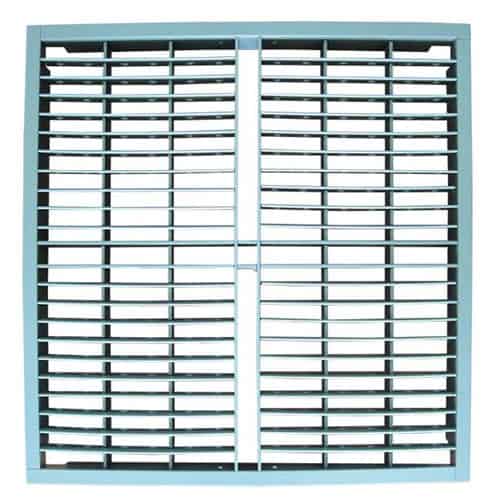

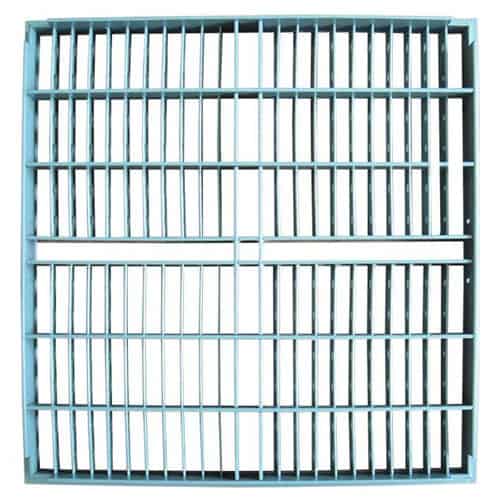

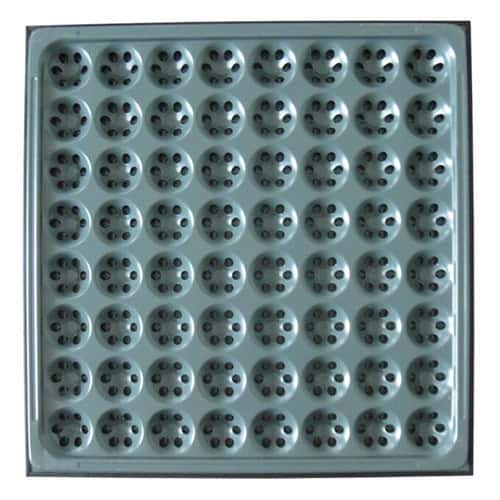

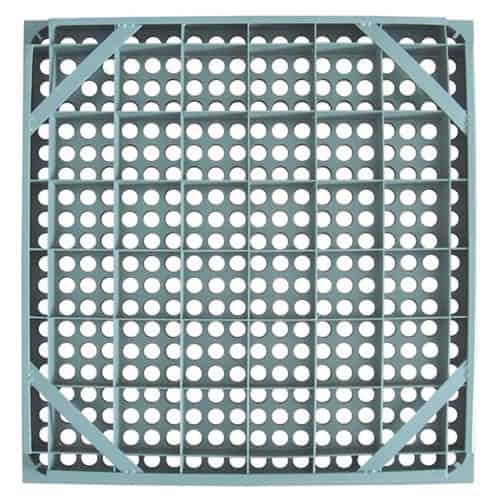

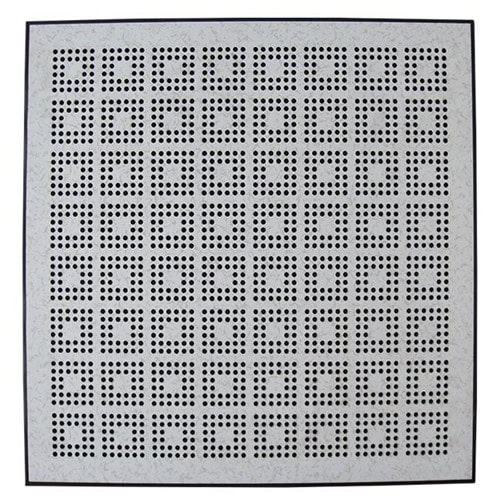

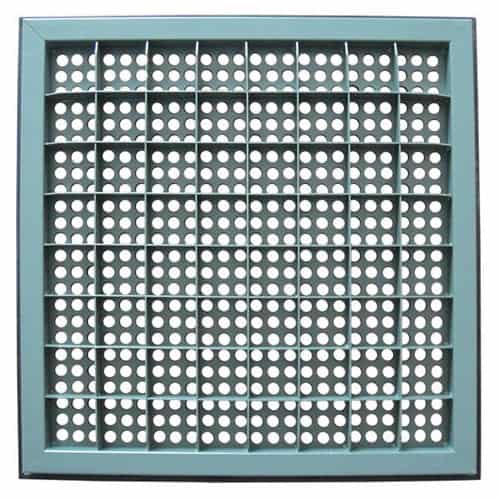

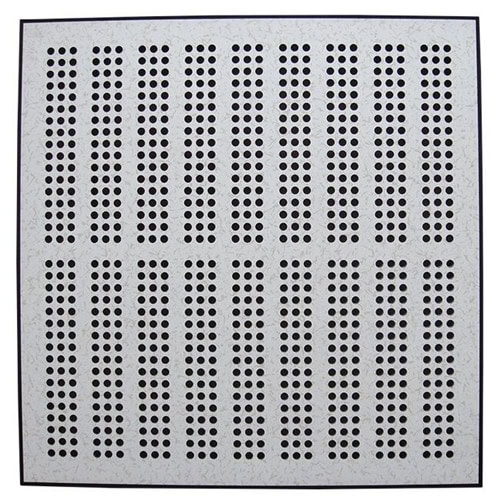

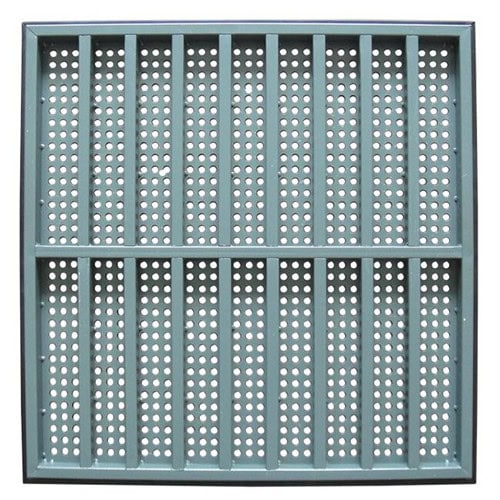

Model: 17%-65% ventilation rate


Size: 600*600mm, 24”*24”


Materials: Steel, aluminum


Installation: Stringer system


Perforated raised floor system

Specification

Panel

Dimension: 600*600 (Tolerance: 0-0.4mm)
Thickness : 35mm
Tolerance of flatness: ≤0.5mm (on diagonal on top of panel )
Surface of panel: HPL, PVC
Ventilation rate: 20-65%
Panel weight: 9-13kg/pc
Panel material: steel sheet

Perforated panel is used under air flow system,material is steel with electrostatic spraying or aluminum. According to customer’s requirements the surface covered HPL pr PVC. Airflow rate is 20-65%, together with the airflow sliding damper. The perforated panel performs much more efficiency on air control in computer rooms. And the ventilation rate can be adjusted arbitrarily from 0% to 65%. Perforated panel can be matched with anti-static raised floor panels or separately use.

Under-structure

Moulder: 600*600mm
construction height: 100-2000mm
Pedestal material: flat head & round head
                           galvanized steel

Application

Computer room, communication room, exchange equipment room and places require air circulation, dust-proof and anti-static environment.

Characteristics

  • Available with top surface adjustable dampers
  • Interchangeable with woodcore panel/calcium sulphate panel
  • Provide sperior cooling for managing heat loads
  • Same size and finish as the solid panel

FAQ

1.Q:Can your factory supply OEM service?
A:Yes, your logo & brand can be punched on panel & accessories according to your design.

2.Q:How about the delivery time?
A:Depend on your quantity. As the regular specification for one 20ft container of raised floor will be 15 days. Of course, if it’s urgent, Titan raised floor can help to arrange it accordingly.

3.Q:What’s your warranty?
A: More than 10 years warranty.

4.Q:How you assure the quality?
A:As the original and professional manufacturer of raised floor, we own an QC team, to inspect and guarantee each production process, regarding to incoming raw material quality, process quality, testing result, existing problems during work.

5.Q:What are your payment terms?
A:We have 2 main payment terms, as below
T/T:30% deposit and the balance should be paid against B/L.
L/C:L/C at sight. For exclusive agents, we support long-term L/C sometimes.

6.Q: Is the free sample available?
A: Yes, of course. We are glad to provide free samples immediately.

Why Perforated Panel?

Air conditioning system is widely used in buildings, data center, clean room, etc, it is necessary to create a healthy and comfortable indoor temperature. Perforated Panel in connection with raised floor meet these requirements.

Air-flow perforated panels use the underfloor plenum for air supply or return and it takes advantage of natural thermal lift with warm and stale air extracted by ceiling returns. This result in more pleasant working conditions for human comfort. It is available in standard or heavy-duty load ratings and surface coverings finish are tailored to match finish of the solid panel.

The structure of perforated panel can be exactly the same with other solid raised floor, such as steel cementitious raised floor panels, woodcore raised floor or calcium sulphate raised floor. The open ratio can be changed easily by damper from 0-65%.

They provide configurable uniform and draft-free supply/exhaust air. For the indoor climate in office areas, special panels with laminar airflow or panels with air outlets are available.
